MABR (Membrane Aerated Biofilm Reactor) Technology: High Efficiency and Energy Saving
I. Introduction to MABR (Membrane Aerated Biofilm Reactor)

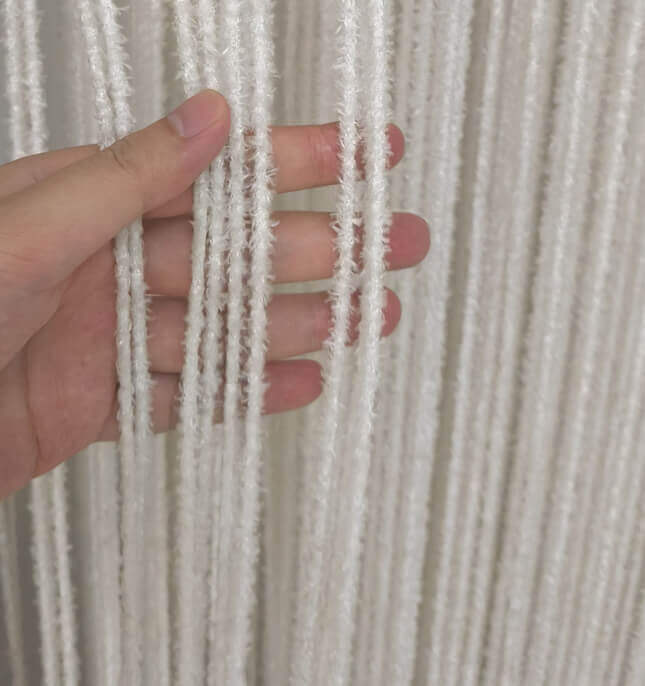

The MABR (Membrane Aerated Biofilm Reactor) is a novel wastewater treatment process. It utilizes hollow fiber membranes as a carrier, transferring air through the membrane wall to the microorganisms in the biofilm on the membrane surface via molecular diffusion, thereby achieving efficient biological nitrogen removal, phosphorus removal, and organic matter degradation. Compared to traditional activated sludge processes, MABR technology not only significantly reduces energy consumption but also offers advantages such as stable operation, a small footprint, and excellent effluent quality.
II. Working Principle of the MABR (Membrane Aerated Biofilm Reactor)
MABR utilizes a dual mechanism of “membrane oxygen supply + biofilm reaction”:
Membrane oxygen supply: Air diffuses from the membrane to the outside, allowing aerobic bacteria in the biofilm to directly obtain oxygen.
Simultaneous reaction: The outer layer of the biofilm is an aerobic zone, while the inner layer is an anoxic zone. This allows for simultaneous nitrification and denitrification reactions, significantly improving nitrogen removal efficiency.
Energy efficiency advantage: No traditional forced aeration is required, and oxygen transfer efficiency is 3-5 times that of traditional processes, resulting in significant energy savings.
III. Advantages of MABR Technology
Energy efficiency and high efficiency: Improved oxygen utilization reduces energy consumption by 30%-50%.
Stable water quality: High ammonia nitrogen and total nitrogen removal rates in effluent, with COD removal rates exceeding 90%.
Small footprint: The equipment is compact and suitable for decentralized rural wastewater treatment.
Simple operation and maintenance: No complex aeration system is required, resulting in low maintenance costs.
Wide application: Suitable for urban domestic sewage treatment, rural sewage treatment, and industrial wastewater pretreatment.
IV. Application scenarios of MABR membrane aeration bioreactors
Rural sewage treatment: Effectively solves the challenges of small-scale decentralized sewage treatment.
Municipal sewage treatment plant upgrades: Improve nitrogen and phosphorus removal rates to meet higher emission standards.
Industrial wastewater treatment: Suitable for treating organic wastewater from the food, pharmaceutical, and printing and dyeing industries.
Black and odorous water treatment: Improve the water quality of polluted water bodies such as rivers and lakes.
V. Why choose MABR technology?
With increasingly stringent environmental protection policies, the wastewater treatment industry is increasingly demanding energy-saving, consumption-reducing, and stable technologies. MABR aerated membrane bioreactors, with their energy-saving advantages, high treatment efficiency, and strong adaptability, are gradually becoming the mainstream choice in wastewater treatment.
VI. Conclusion
As a next-generation wastewater treatment process, MABR aerated membrane bioreactors not only represent the development direction of membrane bioreactor technology, but also provide a superior solution for rural wastewater treatment, municipal upgrading, and industrial wastewater treatment. In the future, with the continued promotion and optimization of MABR technology, it will play an even greater role in ecological protection, energy conservation, and emission reduction.
