What Problems Exist with MBR Membrane Systems?
Introduction

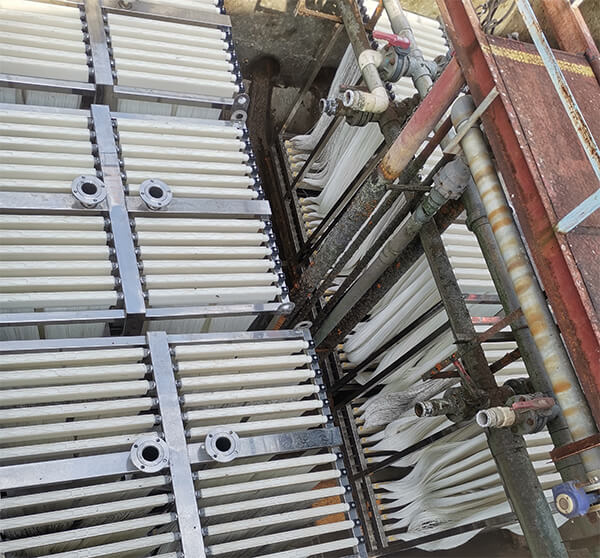

MBR membrane systems (membrane bioreactors) are widely used for municipal and industrial wastewater treatment due to their high effluent quality, small footprint, and high degree of automation. However, problems with MBR membrane systems have also gradually emerged, including membrane fouling, high energy consumption, high operating costs, and limited membrane lifespan. These factors directly impact their economic viability and widespread application. This article will deeply analyze the main issues with MBR membrane systems and propose optimization strategies.
I. MBR Membrane Fouling and Maintenance Challenges
1. Types of Membrane Fouling
Physical fouling: Suspended particles and colloids deposit, forming a filter cake layer, leading to increased transmembrane pressure (TMP) and decreased flux.
Chemical fouling: Scaling of inorganic salts (CaCO₃, Fe(OH)₃) and adsorption of organic matter clog membrane pores.
Biological fouling: Microorganisms form biofilms on the membrane surface, further exacerbating clogging.
2. Consequences and Costs
Frequent backwashing and chemical cleaning (such as sodium hypochlorite and citric acid) not only increase O&M costs but also shorten the life of the MBR membrane.
Offline cleaning requires downtime, impacting continuous treatment.
Online cleaning is difficult to completely remove deep-seated contamination.
II. High Energy Consumption and Operating Costs
1. High Aeration Energy Consumption
To prevent membrane fouling, MBR systems require high aeration intensity (air-to-water ratio of 15:1-25:1), accounting for 60%-70% of total energy consumption.
Example: The electricity consumption of a municipal wastewater treatment plant is 0.4-0.6 kWh/ton of water, 30%-50% higher than traditional activated sludge processes.
2. High Membrane Replacement Costs
The membrane module lifespan is generally 3-8 years.
Membrane module costs account for 30% of the total investment, or 200 yuan/㎡, placing a financial burden on small and medium-sized projects.
III. Process Design and Operational Complexity
Strict Pretreatment Requirements: Screen accuracy ≤ 1 mm, and a grit chamber is essential, otherwise membrane surface scratches and blockages are likely.
Sensitive Operating Parameters: MLSS must be controlled at 8,000, 25 L/(m²·h); otherwise, fouling will accelerate.
Weak Shock Load Resistance: Sudden increases in influent COD or SS can easily lead to MBR membrane system blockage or sludge bulking.
IV. Economic Efficiency and Large-Scale Application Bottlenecks
High Investment: Approximately 2,000-2,500 RMB per ton of water.
Difficult Sludge Treatment: High sludge concentrations require specialized dewatering equipment, increasing sludge treatment costs.
Limited Large-Scale Application: Projects with a capacity of over 100,000 tons/day require a large number of membrane modules, making management and maintenance difficult.
V. Membrane Materials and Technology Bottlenecks
Low Membrane Material Durability: PVDF and PTFE membranes are susceptible to aging in strong acidic, alkaline, or oxidizing environments.
Poor low-temperature adaptability: Membrane flux decreases by 30%-50% below 10°C.
Limitations of modified membranes: While anti-fouling membranes offer better performance, they are expensive and difficult to commercialize.
VI. Environmental and Secondary Pollution Risks
Wastewater cleaning: Chemical cleaning agent residues require additional treatment, otherwise they will affect effluent quality.
Disposal of discarded membranes: Membrane materials such as PVDF are non-biodegradable, and there is a lack of mature recycling solutions.
VII. Typical Case Studies
An industrial park’s MBR system suffered severe membrane fouling due to high oil and fat content in the influent (>50 mg/L). Cleaning was required every two weeks, resulting in a membrane lifespan of only two years.
Improvements: Adding flotation pretreatment (reducing oil and fat content to 10 mg/L) and replacing oil-resistant flat membranes ultimately extended the membrane lifespan to five years.
VIII. Summary and Optimization Directions
Problems with MBR membrane systems focus on membrane fouling, high energy consumption, high costs, and complex operation.
Improvements include:
Technological innovation: Research and development of anti-fouling membrane materials, intelligent aeration control, and intermittent aeration.
Process optimization: Enhanced pretreatment and introduction of advanced oxidation processes (ozone and UV).
Economic improvement: Modular design and large-scale production reduce membrane costs.
Operation and maintenance upgrades: Intelligent monitoring (TMP online warning) and professional training to improve system stability.
